Here below is the detailed introduction of Concrete Delivery Cylinders.
What is Delivery cylinder?
A concrete pump delivery cylinder is a key component of a concrete pump system that is responsible for pushing the concrete mixture through the pump and into the placement area. The purpose of the delivery cylinder is to provide the necessary pressure and force to move the concrete efficiently and effectively. The cylinder works in conjunction with the pump’s hydraulic system to create the pumping action that propels the concrete.

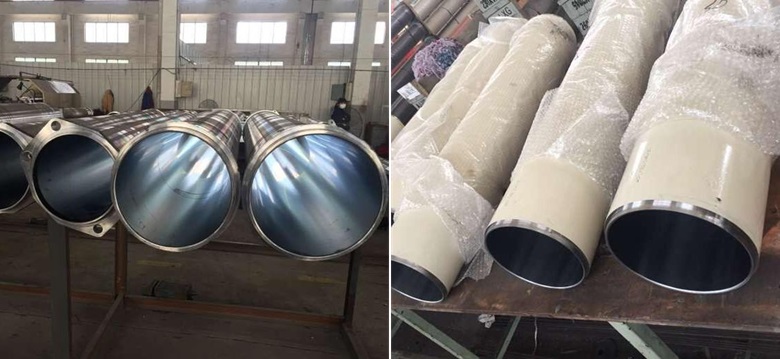

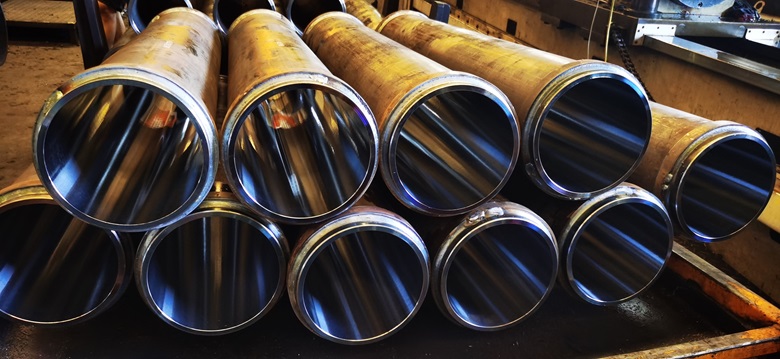

A delivery cylinder is usually made of a high quality hydraulic cylinder tube with inner diameter chrome plated, such tube is also known as Chrome Plated ID tube.
There are multiple reasons why high-quality cylinders are crucial in concrete pumping operations. Firstly, their durability and excellent craftsmanship guarantee smooth and efficient pump operation, minimizing the chances of breakdowns and delays during the pumping process. Moreover, these top-notch cylinders can withstand the high pressures and abrasive properties of concrete pumping, thus extending the lifespan of the pump system and reducing maintenance expenses. Ultimately, investing in high-quality cylinders is essential to ensure the reliability and performance of a concrete pump in different construction projects.

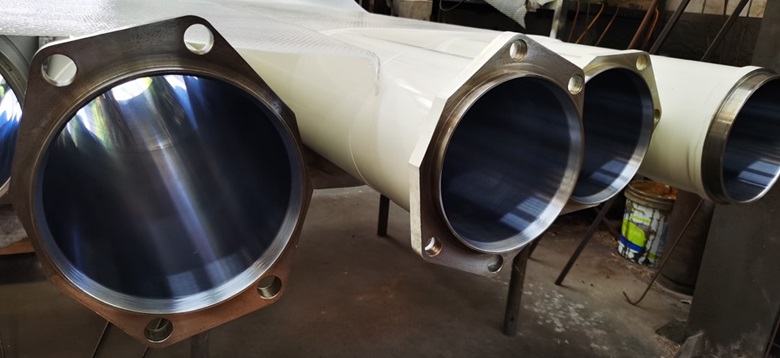

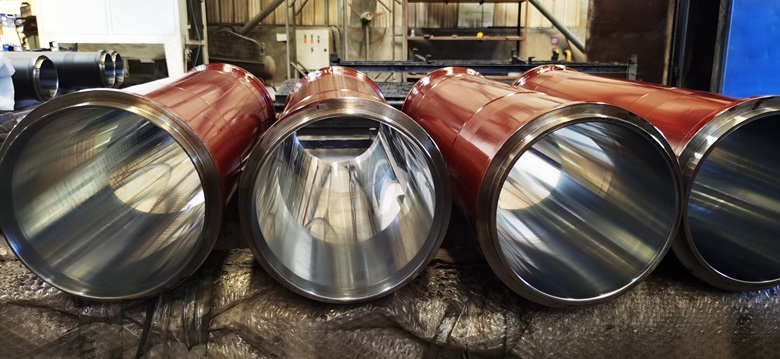

Introduction of our Concrete delivery cylinders
When it comes to our concrete pump delivery cylinders, we prioritize durability above all else. We understand the demanding nature of heavy-duty use, which is why we have chosen materials that can withstand these rigorous conditions. Whether you find yourself working on a modest residential project or a sprawling commercial construction site, our cylinders are designed to consistently perform and provide reliable results.
Concrete Pump Delivery Cylinder Data Chart
| Model Number: | Concrete Pump Delivery Cylinder DN200 DN230 DN260 |
| Products name | Concrete pump delivery cylinder /material cylinder |
| Material | Quality steel (ST52.3/ E355/S355) + Super thick chrome plating |
| Cylinder Diameter | 100mm, 150mm,180mm, 200mm, 230mm, 250mm, 260mm |
| Longitud | 1070mm to 2635mm |
| Chrome plate layer thickness | 0.25-0.3mm, 0.26~0.33mm, other upon request. NSS 96h or higher. |
| Inner diameter Roughness | Max Ra 0.2μm |
| Hardness on chromium plating surface | HV900 |
| Service Life | >50000m3 |
| Aplicación | Concrete Pump, Material Cylinder, Trailer Pump, Line Pump |

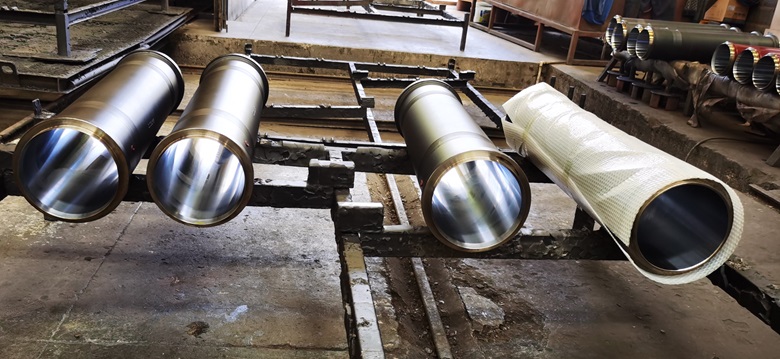

Concrete Pump delivery cylinder sizes

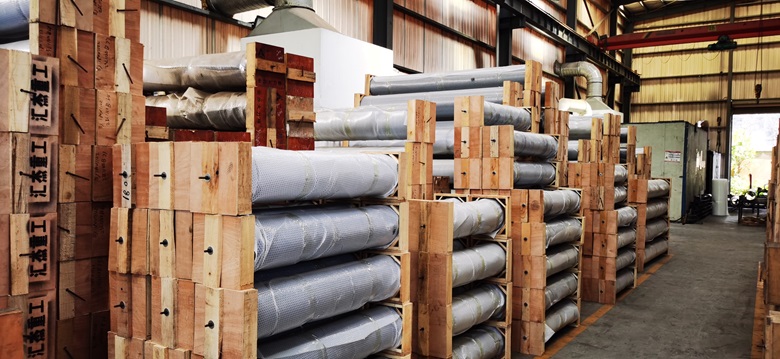

As one of a professional delivery cylinder and delivery cylinder tube suppliers, our company manufacturer and supply a wide range of delivery cylinder tubes / concrete pump delivery cylinders, such as below list.
Delivery Cylinder Sizes for Putzmeister | |||
| Outer Diameter(mm) | Inner Diameter(mm) | length(mm) | Travel(mm) |
| 305 | 280 | 2355 | 2200 |
| 278 | 250 | 2710 | 2500 |
| 278 | 250 | 2310 | 2100 |
| 254 | 230 | 2320 | 2100 |
| 254 | 230 | 1600 | 1400 |
| 219 | 200 | 2305 | 2100 |
| 219 | 200 | 1585 | 1400 |
| 203 | 180 | 2305 | 2100 |
Delivery Cylinder Sizes for SANYI | |||
| Outer Diameter(mm) | Inner Diameter(mm) | length(mm) | Travel(mm) |
| 280 | 260 | 2345 | 2200 |
| 280 | 260 | 2245 | 2100 |
| 280 | 260 | 2145 | 2000 |
| 280 | 260 | 2045 | 1900 |
| 258 | 230 | 2146 | 2000 |
| 258 | 230 | 1946 | 1800 |
| 258 | 230 | 1746 | 1600 |
| 226 | 200 | 1946 | 1800 |
| 226 | 200 | 1746 | 1600 |
| 226 | 200 | 1546 | 1400 |
Delivery Cylinder tube Sizes for Zoomlion | |||
| Outer Diameter(mm) | Inner Diameter(mm) | length(mm) | Travel(mm) |
| 280 | 260 | 2250 | 2100 |
| 250 | 230 | 2250 | 2100 |
| 258 | 230 | 1800 | 1600 |
| 219 | 200 | 1960 | 1800 |
| 219 | 200 | 1800 | 1600 |
| 219 | 200 | 1587 | 1400 |
Other sizes are also available upon customers’ request, simply contact us for more details.
Besides metric sizes, we also manufacturer and supply wide range of imperial size (inch sizes) of delivery cylinders / delivery cylinder tubes, such as 3.75″ x 9.5″ delivery cylinder, 6″ x 39″ delivery cylinder, and so on.
Our concrete pump delivery cylinder can be used for a wide range of Brand Name, such as:
Schwing , Sany, Putzmeister, Zoomlion, Kyokuto, Mitsubishi, Nigata, Ihisce and so on.
Delivery cylinder tube / Delivery cylinder Applications
Concrete delivery cylinders are an essential tool in the construction industry, serving a variety of purposes.
Firstly, they are used to deliver concrete to challenging locations, such as high-rise buildings or tight spaces, where access is limited.
Secondly, these cylinders enable precise placement of concrete, ensuring it is poured exactly where it is needed. This accuracy contributes to efficient and timely project completion.
Additionally, the use of concrete delivery cylinders reduces the need for manual labor, resulting in cost savings.
Moreover, they enhance safety on construction sites by minimizing the risks associated with lifting and carrying heavy loads during the concrete pouring process.
In various construction projects, concrete delivery cylinders prove to be a flexible and effective resource for the transportation and pouring of concrete. Our delivery cylinder tubes / delivery cylinders find specific applications in the following areas:
- Trailer Concrete Pump,
- Truck-mounted Concrete Boom Pump,
- Vehicle-Mounted Pump,
- Low-Emission Truck-mounted Concrete Boom Pump,
- High-Emission Truck-mounted Concrete Boom Pump, and many more.
Advantages of our delivery cylinder tube / Concrete pump delivery cylinder
- – Durable materials and construction
- – Our concrete pump delivery cylinders is their precision engineering, which ensures a tight seal and efficient delivery of concrete. This not only helps to minimize waste but also improves the overall efficiency of the pumping process.
- – Compatibility with various types of concrete pumps
- – In addition to their durability and performance, our pump cylinders are also easy to maintain and service, making them a cost-effective choice for any construction company. With proper care and maintenance, our cylinders can provide years of reliable service, helping you to complete your projects on time and within budget.
If you’re looking for top-notch concrete pump delivery cylinders, you’ve come to the right place. Don’t hesitate to reach out to us today for further information on our exceptional products and their ability to enhance your concrete pumping operations. You can rely on our extensive knowledge and years of experience to deliver the finest pump cylinders available in the market.
Need delivery cylinder? Contact us now.
