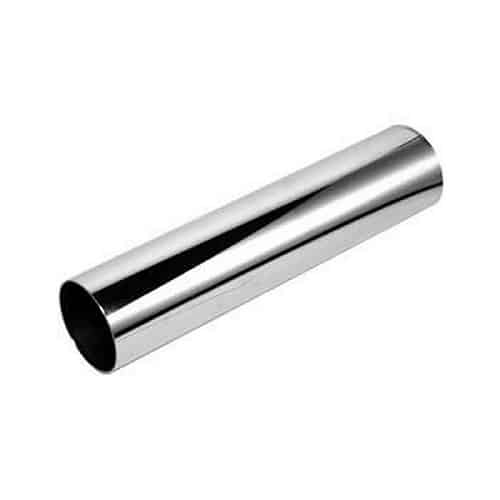

What is Chrome Plated Hollow Bar & chrome plated od tubing?
Chrome plated hollow bar is is known as chrome plated OD tubing also, it is a very important and popular material for producing hydraulic piston rods and Linear shafts in various machines. The biggest advantage of chrome plated hollow bar than normal chrome plated bar is that the unit weight is light, people can greatly reduce the weight of the hydraulic piston rod, when design the safety hydraulic cylinders.

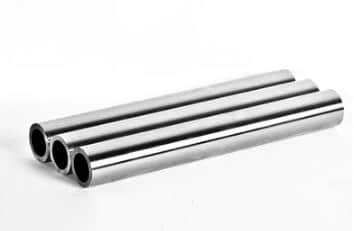

Chrome plated hollow bar are produced from hot rolled or cold drawn seamless tubes with outer diameter ground, polished and electro-plated with a certain thickness of chrome plating.
Chrome plated hollow bar Manufacturer
Skyline Pipes is a high quality chrome plated hollow bar manufacturer and supplier in China. As the leading China cylinder material manufacturer, Skyline produces chrome plated hollow bar since 20 years ago. Our factory is equiped with modern machines and facilites, which including machines and facilities for manufacturing chrome plated hollow bars, such as cold draw machines for making the tubes and hollow rods, grinding machines, polishing maches, straightening machines, cutting machines, heat treatment furnaces and so on.
And now, our factory manufacturers and supplies chrome plated hollow bars / rods of size range from OD 12mm to OD 609mm, with various types of different steel grades. Our chrome plated hollow bars and rods are exported to many countries.
Chrome Plated Hollow bar /chrome plated OD tubing detailed descriptions
Materials of chrome plated od tubes / chrome plated hollow bars
As the leading China chrome plated od tubing manufacturer & suppliers, our factory can produce chrome plated hollow bars (chrome plated od tubing) with materials as below.
| Steel Grade | Chemical Composition % | ||||
| Carbon | Mn | Si | P | S | |
| ST 52.3 | 0.14 – 0.18 | 1.20 – 1.40 | 0.15 – 0.30 | 0.020 max | 0.010 max |
| SAE 1045 | 0.43 – 0.50 | 0.60 – 0.90 | – | 0.040 Max | 0.050 Max |
| CK 45 | 0.42 – 0.50 | 0.50 – 0.80 | 0.40 Max | 0.035 Max | 0.035 Max |
| SAE 1020 | 0.15 – 0.20 | 0.30 – 0.60 | – | 0.035 Max | 0.035 Max |
Besides the above materials, we also produce SAE 4140 chrome plated OD tube for high performance and high strength applications.
| SAE 4140 | C% | Si% | Mn% | P% | S% | Cr% | Mo% |
| Min | 0.36 | 0.1 | 0.65 | – | – | 0.75 | 0.15 |
| Max | 0.44 | 0.4 | 1.1 | 0.04 | 0.04 | 1.2 | 0.35 |
Among these materials, ST52 /E355 chrome plated hollow bars are the most popular.

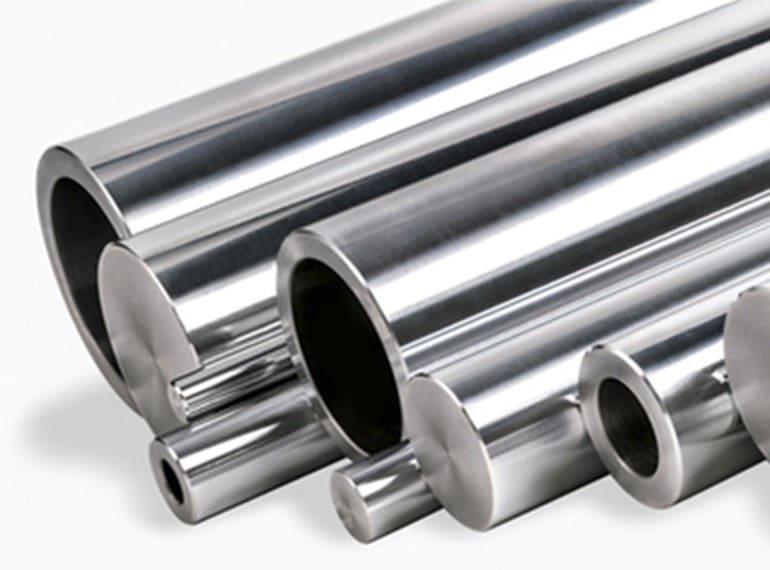

Dimensions of Chrome plated hollow bar / rods
As a professional China chrome plated tube manufacturer & supplier, our factory produces chrome plated hollow rods with metric sizes and imperial sizes. Here below is the size range of chrome plated hollow bar.
Metric size: O.D 12 mm to O.D 609 mm
Imperial size: O.D 1/2 inch to O.D 24 inch.
Length: Max. 14 meters.
Contact us to get the dimension chart.

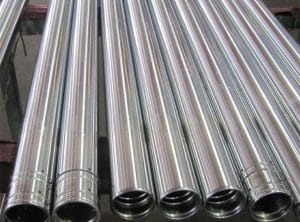

Surface condition of chrome plated hollow rods
Our chrome plated hollow rods are chrome plated on outer diameter. The chrome plating thickness can be 15 microns, 20 microns, 25 microns, 30 microns, 50 microns, 60 microns, etc upon customers request.
The chrome plating thickness min. 20 microns is the most popular standard.
The roughness of outer diameter is Ra 0.2μm to Ra 0.4μm (8RA to 15RA).
How to order chrome plated OD tubes / chrome plated hollow bar?
When order, customers usually need to tell us the product name, Standard, material, Size, and chrome plated thickness.
Product name: Chrome plated OD tube, Chrome plated hollow bar, or Chrome plated hollow rod
Standard: EN10305-1 / DIN 2391, ASTM A519 etc
Material: ST52 / E355, SAE 4140/42CrMo, SAE 1020, CK45/C45
Size: OD x ID x Length
Chrome plating thickness: 20 microns, 25 microns, 30 microns, 50 microns and so on.
Here below is the sample description:
Chrome plated hollow bar (chrome plated OD tube), material as per EN 10305-1 /E355 +SR, Size OD ** mm, ID ** mm, length ** mm, with Outer diameter chrome plated thickness ** microns.
Please contact us for inquiring prices and order.
Email: [email protected]
Tel: +86-186-1172-0998
Besides chrome plated OD tubing, we also produce chrome plated ID tubing, which is honed tubing with inner diameter chrome plated with a certain chrome plating thickness.
