Product Overview – 4140 honed cylinder tubes:
Product Name: 4140 Hydraulic Cylinder Barrel

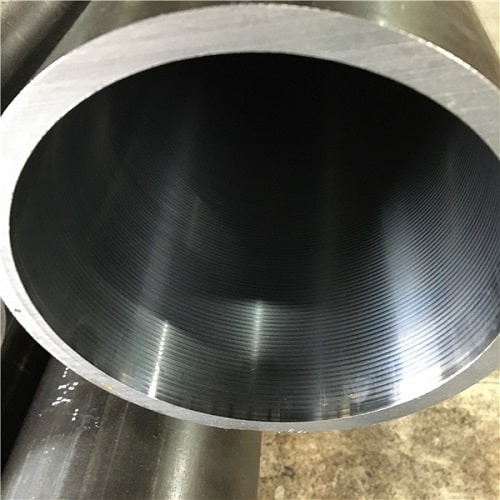

This product is widely used to manufacturer hydraulic cylinders or repair cylinders, as the hydraulic cylinder barrel is usually made of seamless cold drawn steel tubes with inner diameter honing, so it is also well known as honed tubing.
Place of Origin: Wuxi, China
Brand: SKYLINE
Certificate: ISO9001:2015
As one of the leading hydraulic cylinder barrel manufacturers and suppliers, Skyline has been supplying and exporting honed hydraulic cylinder barrels for nearly 30 years.
Product Details – 4140 hydraulic cylinder barrel:
- Material: SAE4140/AISI4140/42CRMO4/SCM440
- Delivery Condition: BK, BK+S, GBK, NBK
- ID Size : 20mm – 610mm
- Length: max 16m
- Type: Seamless, Hot Rolled, Cold Rolled, Cold Drawn
- Straightness: ≤ 0.5/1000
- Roughness: 0.2-0.4 u
- Tolerance EXT: DIN2391, EN10305, GB/T 1619
- Tolerance INT: H7,H8,H9
- Protection: Anti-rust oil on inside and outside surface, plastic caps in both ends.
- Packing: Bundle with steel strip and PE sheet or wooden case
What is 4140 steel?
Steel 4140 is AISI standard grade, it is a kind of alloy structural steel, equivalent to China standard GB 42CrMo.
SAE 4140 alloy steel has high fatigue strength and low notch sensitivity, high low temperature impact toughness, no obvious temper brittleness, and is mainly used in the quenched and tempered state. It is used to manufacture high-strength parts and parts with large cross-sections and other stress-bearing components under impact load. Such as high strength Hydraulic cylinder rods, penaumatic cylinder rods, the transmission eccentric shaft of the horizontal forging machine, the crankshaft of the forging press, etc.
Here below is the material specifications of steel grade SAE 4140.
Besides 4140 honed cylinder barrel tubes, we also produce 4140 chrome bar, this product is the chrome rod for hydraulic cylinders made of steel SAE 4140, which is mostly used to produce hydraulic piston rods.
